Intel DN2800MT Half-Height (Intel Atom 2x1.86Ghz CPU, 10-19VDC) [FANLESS]

PRODUCT IS CURRENTLY NOT AVAILABLE !

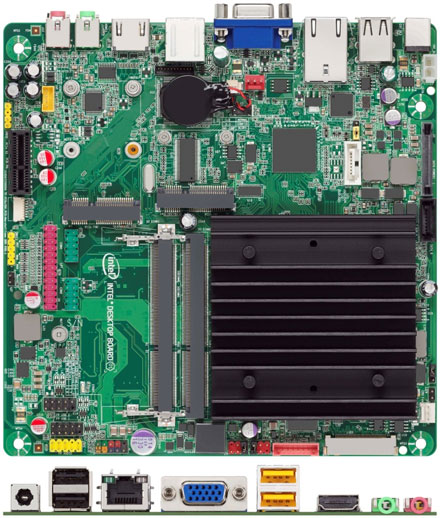

Intel DN2800MT Half-Height (Intel Atom 2x1.86Ghz CPU, 10-19VDC) [<b>FANLESS</b>]
3D 360° View
  • 2cm height !
  • Mini-PCI Express !
  • Hyper-Threading !
  • 10-19VDC Input !

- Successor model of Intel D945GSEJT mainboard
- Dual-core Atom with Hyper Threading
- Slim form factor; <20mm z-height
- Meets channel All-In-One specification
- ExpressCard/34 adapter option (mobile ecosystem compatibility) via PCIe mini Card
- Supports new Mobile SATA (SSD) card via full-length PCIe Mini Card
- Supports Z-U130 flash drive
- Wide-range (10-19V) input voltage tolerance
- High current rating (up to 1.3A) on two back-panel USB ports
- TPM stuffing option


Note :
- If you do not get picture on DSUB-15 VGA, then press CTRL+ALT+F1


Share

CPU Intel Atom N2800 2x1.86GHz
Graphics Intel GMA
Formfactor ITX (17x17cm)
RAM 2x SO-DDR-III
Audio 2+2 Channel HD Audio
Base Intel ITX
USB 8x USB 2.0
Firewire --
IDE/SATA 2x SATA
LAN 1x 10/100/1000
Parallel 1x
Serial 2x
yes TV-Out
no PCI
yes Mini-PCI
no IDE
no DVI
yes 800x480 Resolution
yes Passive-Cooling
yes PCI-Express
no PCMCIA
yes SATA
no CPU changeable
no Compact Flash
Name DN2800MT
Form Factor Mini-ITX Mainboard
CPU Intel® Atom™ N2800 (2x 1.86GHz)
1MB Cache, With Hyper-Threading
Chipset Intel NM10 Express
Graphics VGA + HDMI + LVDS + eDP
Memory 2x SO-DDR3 800/1066, 4GB max, Single channel
LAN 1x Intel 10/100/1000 MBit
Connectors (rear) - 4x USB 2.0 (2x with High-Current 1.3A)
- 1x LAN RJ-45
- 2x Audio
- 1x HDMI
- 1x VGA
- 1x DC-In (10-19V)
Audio 2+2 Channel HD Audio
Connectors (internal) - 2x SATA-II (3GB/s)
- 4x USB 2.0
- 1x PCIe
- 2x Mini-PCIe
- Front Audio
- SPDIF
- 1x LPT
- 2x RS232
- LVDS (Dual 24bit)
- eDP (4-lane 24bit)
- Z-U130 Flash Drive support
- TPM stuffing option
- Mobile SATA (SSD) support via Mini-PCIe
- ExpressCard/34 support via Mini-PCIe
Included - DN2800MT Mainboard (with 2x 1.86Ghz Atom CPU)
- I/O ATX rear plate
- 1x SATA cable
- Quickstart-Guide
- Drivers CD
Data sheet Download (PDF)
Data sheet Print view
Cedar Trail Review [DE] Download (PDF)
Cedar Trail Review [EN] Download (PDF)
DN2800MT Review [DE] Download
DN2800MT Review [EN] Download
Please login for creating product ratings.
Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: 5 von 5 Sternen
Average rating, based on 17 ratings
3 von 5 Sternen from rainer13 am 08.07.2021 | | See all my comments
5 von 5 Sternen from Stefy am 21.05.2014 | | See all my comments

Excellent rapport qualité/prix.
Fonctionne de manière stable et rapide avec linux centOS 6.5.

5 von 5 Sternen from lex111 am 20.11.2013 | | See all my comments
5 von 5 Sternen from s.schantl@tecon.co.at am 19.11.2012 | | See all my comments

Geniales Ding, at fast jede Schnittstelle(Display) an Board, die man sich so wünschen kann. D.h. man hat bei den DTFT-LCD's die man anschließen will sehr viele Möglichkeiten(VGA, LVDS, DP-Port, HDMI). Die TDP ist auhc spitze, der Intel-Dual-Core wir dmmit diesem Kühlkörper handwarm! Ansonst ist Möglichkeit von SSD und mSATA als Datenträger zu verwenden(+ die dafür zur Verfügung gestellten Befestigungsmöglichkeiten) auch sehr gut gelöst. Bin bis jetzt voll zufrieden...

5 von 5 Sternen from labware am 28.09.2012 |

This main board is one of the most affordable available in the market, the perfomaces vs. the price ratio are one of the best.
At the moment is the fastest board among the fanless solution.
it is half size height, it means can be fit anywhere.
Last but not least, it accepts +12V as input voltage, really practical !
