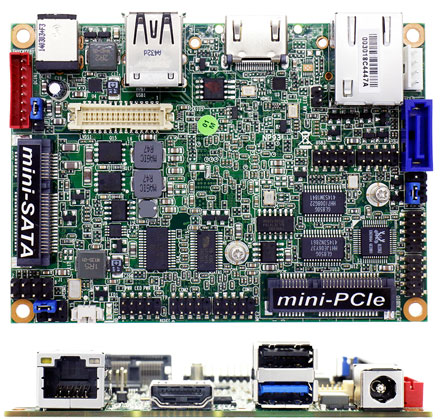

Jetway NP93-2930 (Intel Bay Trail)

Jetway NP93-2930 (Intel Bay Trail)

  • Intel®  Bay Trail N2930 (QC, 1.83G)
  • DDR3 on board  2GB
  • Support 1 * Serial ATAII (3Gb/s) Device
  • Integrated Realtek ALC662 HD Audio CODEC with 4-CH
  • 1 * 24 bits Dual Channel LVDS header
  • Support HDMI Output
  • Supports 1 * Realtek RT8111G Gigabit LAN
  • 100 x 72 mm Pico Form Factor


Share

298.00 EUR
incl. 19% VAT, plus shipping
Available in 4 weeks.
Will be ordered for you.
Add to cart
RAM :

SSD (mSATA):

Build/Install:

 Form Factor
Dimensions - Pico (100 X 72 mm)

 Processor System
CPU - Intel® Celeron® Processor N2930/N2807
Core Number - by CPU
Max Speed - by CPU
L2 Cache - by CPU
Chipset - SoC
BIOS - UEFI

 Expansion Slot
PCI - 0
Mini-PCIe - 1 (half size)
mSATA - 1
PCIe - 0
CFast Card Socket - 0
CF Card Socket - 0

 Memory
Technology - 1 * DDR3 1333MHz Single CH on board
Max. - 2GB
Socket - 0

 Graphics
Controller - Intel® HD Graphics up to 854 MHz
VRAM - Shared Memory
VGA - No
LVDS - 1 * Onboard 24-bits dual channel connector
HDMI - 1
DVI-I - No
DisplayPort - No
MultiDisplay - Yes (Dual Display)

 Ethernet
Ethernet - 10/100/1000 Mbps
Controller - GbE LAN: RTL8111G
Connector - 1 x RJ 45

 SATA
Max Data Transfer Rate - 1 * SATAII (3.0Gb/s)

 Rear I/O
VGA - 0
DVI-I - 0
HDMI - 1
DisplayPort - 0
Ethernet - 1
USB - 2 (1 x USB 2.0 + 1 x USB 3.0)
Audio - 0
Serial - 0
eSATA - 0
PS2 - 0
DC-input - DC in Jack 12V

 Internal Connector
USB - 6 ( 6 x USB 2.0 via 10pin header )
PS2 - 0
LVDS / inverter - 1
VGA - 0
Serial - 1 (1x RS-232 with 5V/12V selectable header)
SATA - 1 * SATAII (3.0Gb/s)
mPCIe - 1 (half size)
Parallel - 0
mSATA - 1
CIR - 0
GPIO 8-bit - 0
Chassis intrusion - 0
Audio Header - 1

 Watchdog Timer
Output - From Super I/O to drag RESETCON#
Interval - 256 segments, 0,1,2…255sec/min

 Power Requirements
Input PWR - 12V DC-In Jack
Power On AT/ATX Supported
- AT : Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready

Certifications
Certifications - CE, FCC, RoHS, REACH

 Environment
Temperature - Operating: 0℃– 60℃
- Storage: -20℃– 85℃
Data sheet Download (PDF)
Data sheet Print view
