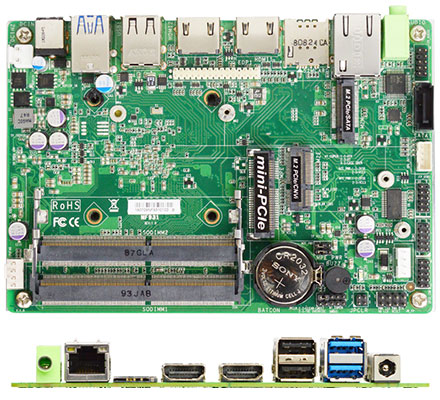

Jetway JNF931-4125 (Intel Gemini Lake)

PRODUCT IS CURRENTLY NOT AVAILABLE !
Jetway JNF931-4125 (Intel Gemini Lake)

The JETWAY JNF931 is 3.5” form factor board adopts the Intel® Gemini Lake SoC Processor. The board supports two SO-DIMM DDR4 2400Mhz memory, up to 8GB. Featuring the integrated Intel® Gigabit Ethernet controller, the JNF931 offers one 10/100/1000Base-TX Ethernet device for network transmission. One SATAIII (6Gb/s) interface and one M.2 M-key support NVMe offer storage devices. Two USB3.1 Gen.1 ports, four USB2.0 ports and one COM port provide versatile expansion. The M.2 E-key can support WIFI/3G/4G and Intel CNVi interface. The JNF931 offers two HDMI2.0 ports and one eDP port which can support 3 independent displays. Because of the above features, JNF931 is suitable for Digital Sign [more]

Share

RAM :

SSD (M.2 NVME):

Build/Install:

The JETWAY JNF931 is 3.5” form factor board adopts the Intel® Gemini Lake SoC Processor. The board supports two SO-DIMM DDR4 2400Mhz memory, up to 8GB. Featuring the integrated Intel® Gigabit Ethernet controller, the JNF931 offers one 10/100/1000Base-TX Ethernet device for network transmission. One SATAIII (6Gb/s) interface and one M.2 M-key support NVMe offer storage devices. Two USB3.1 Gen.1 ports, four USB2.0 ports and one COM port provide versatile expansion. The M.2 E-key can support WIFI/3G/4G and Intel CNVi interface. The JNF931 offers two HDMI2.0 ports and one eDP port which can support 3 independent displays. Because of the above features, JNF931 is suitable for Digital Signage, IOT Solution applications.

  • Intel® Gemini Lake SoC Processor (TDP 10W)
  • 2* DDR4 2400MHz SO-DIMM up to 8 GB
  • 1* 10/100/1000 Base-TX Ethernet Ports
  • 2* HDMI, 1* eDP support triple display
  • 1* COM, 2* USB3.1 (Gen.1), 4* USB2.0
  • 1* M.2 M-key (2242/2280)support NVMe, 1* M.2 E-key (2230 w/ CNVi)
  • 1* SATA III (6Gb/s)

 Model / Part Number
Model – JNF931-4105
Part Number – JNF931-4105
 Form Factor
Dimensions – 3.5” (5.8-in * 4.0-in, 148 * 102mm)
 Processor System
CPU – Intel® Gemini Lake J4105 SoC Processor (TDP 10W)
Core Number – (By CPU)
Max Speed – (By CPU)
Cache – (By CPU)
Chipset – J4105
BIOS – AMI Flash ROM
 Expansion Slot
Expansion – M.2 M-key (2242/2280) Support PCIex2(NVMe) & SATA interface
– M.2 E-key (2230) Support CNVi,USB2.0 & PCIex1 interface
– 1* full size Mini-PCIe Support USB2.0 & PCIex1 interface
 Memory
Technology – DDR4 2400MHz Dual CH SDRAM non-ECC
Max. – 8GB
Socket – 2* SO-DIMM
 Graphics
Controller – Intel® HD Graphics
VRAM – Shared Memory
eDP – 1 (Max Resolution: 4096×2304@60Hz)
HDMI 2.0 – 2 (Max Resolution: 4096×2160@60Hz)
Multi Display – Triple Displays
 Ethernet
Ethernet – 10/100/1000 Mbps
Controller – 1* i211AT
Connector – 1* Intel GbE
 Audio
CODEC – HD Audio: Realtek ALC662VD
Channel – 6 Channel
Speaker – 3W AMP
 SATA
SATA – 3* SATAIII
 Integrated Storage
eMMC – 1* 32GB eMMC (option)
 I/O Connector
Rear I/O – 2* USB3.1 (Gen1), 2* USB2.0
– 2* HDMI
– 1* Ethernet
– 1* SIM card slot
– Line-Out
– DC-IN (12V)
Internal Connector – 2* USB2.0
– 1* eDP
– 1* RS232
– 1* SATAIII
– 1* GPIO (8 bit)
– 1* Audio Header
– 1* SMBUS
– 1* CPU FAN
– 1* AT mode
 Watchdog Timer
Output – From Super I/O to drag RESETCON#
Interval – 256 segments (10sec ~ 255min)
 Power Requirements
Input PWR – DC-IN 12V
Power On ATX PWR (8+24 pin), AT/ATX Supported
– AT : Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
 Certifications
Certifications – CE, FCC, LVD, RoHS, REACH
 Environment
Temperature – Operating: 0°C ~ 60°C
– Storage: -20°C ~ 85°C
 Warranty
Warranty – 2 Years Limited Warranty
