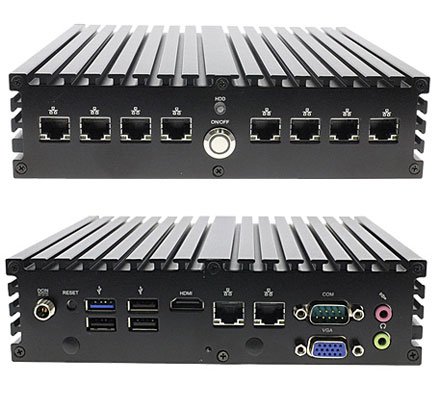

Jetway JBC390F541SXX-19-B (Intel Bay Trail)

Jetway JBC390F541SXX-19-B (Intel Bay Trail)
  • JBC390F541XX-19-B

  • Intel® Bay Trail SoC Processor
  • 1 * SO-DIMM DDR3L 1333MHz up to 8GB
  • 3 * USB2.0, 1 * USB3.0, 1 * COM, 1 * VGA, 1 * HDMI, 2 * RJ45, 1 * MIC, 1 * Line out
  • Product Dimension : 185 x 165 x 48 mm
  • DC-12V_5A_60W Lockable Adapter


Share

449.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks.
Will be ordered for you.
Add to cart
RAM :

SSD (mSATA):

OS:

Build/Install:
MB Model – JNF541-1900
Part No No Expansion 8 LAN 8 COM 16-bits GPIO 32-bits GPIO 4 USB 3.0
– HBJC390F541XX-1900-B
– HBJC390F541WXX-1900-B (Wifi) 		– HBJC390F541AA-1900-B
– HBJC390F541WAA-1900-B (Wifi) 		– HBJC390F541CC-1900-B (non-WIFI)
– HBJC390F541WCC-1900-B (Wifi) 		– HBJC390F541XG-1900-B
– HBJC390F541WXG-1900-B (Wifi) 		-HBJC390F541GG-1900-B
– HBJC390F541WGG-1900-B (Wifi) 		-HBJC390F541XU-1900-B
– HBJC390F541WXU-1900-B (Wifi)
4 COM+4 LAN 4 COM+4 USB3.0 4 LAN+4 USB3.0 4 COM+16-bits GPIO 4 LAN+16-bits GPIO 16-bits GPIO+4 USB 3.0
– HBJC390F541CA-1900-B
– HBJC390F541WCA-1900-B (Wifi) 		– HBJC390F541CU-1900-B
– HBJC390F541WCU-1900-B (Wifi) 		– HBJC390F541AU-1900-B
– HBJC390F541WAU-1900-B (Wifi) 		– HBJC390F541CG-1900-B
– HBJC390F541WCG-1900-B (Wifi) 		– HBJC390F541AG-1900-B
– HBJC390F541WAG-1900-B (Wifi) 		– HBJC390F541GU-1900-B
– HBJC390F541WGU-1900-B (Wifi)
BIOS – AMI EFI Flash ROM
CPU/Chipset – Intel® Bay Trail J1900 SoC Processor
Memory – 1 * DDR3L-1066/1333 SO-DIMM up to 8GB
Storage – 1 * 2.5” SATA drive bay (only support 2.5″ HDD with a hight ≤ 10mm)
– 1 * Full-size mSATA/Mini-PCI Express shared slot
Network – 2 * Intel i211AT Gigabit LAN
– 1 * Half-size Mini-PCIe slot (802.11 b/g/n + BT 4.0 installed in WiFi model)
– 1 * SIM Card Slot
Rear Panel I/O – 1 * USB 3.0, 3 * USB 2.0
– 1 * HDMI, 1 * VGA
– 2 * RJ45
– 1* Line-out, 1* MIC-in
– 1 * COM (Support RS232/422/485)
– 2 * Antenna holes ( WiFi only)
– Lockable DC-In jack
Front Panel I/O – 1 * Power button + LED
– 1 * HDD LED
– COM (Expansion Module)
– Intel Gigabit LAN (Expansion Module, support RS232/422/485)
– USB3.0 (Expansion Module)
– 16-Bits GPIO (Expansion Module)
Power Source – 60W AC-DC Adapter / DC12V-5A
– AC 90~240V input
Compliance – CE, FCC, RoHS, ErP Ready
Temperature – Operating temperature: 0 ~ 50° C
– Storage Temperature: -10 ~ 70° C
Dimensions – 185 (W) x 165 (D) x 48 (H) mm
Packing – Net Weight: 2.4KG
– Gross Weight: 3.4KG
– Color Box dimension: 250 (W) * 118 (D) * 295 (H) mm
OS Support – Windows 7, Windows 8.1, Windows 10, Linux
Warranty – 2 Years limited warranty
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (Rackmount) Download (PDF)
Jetway Catalog (Barebones) Download (PDF)
