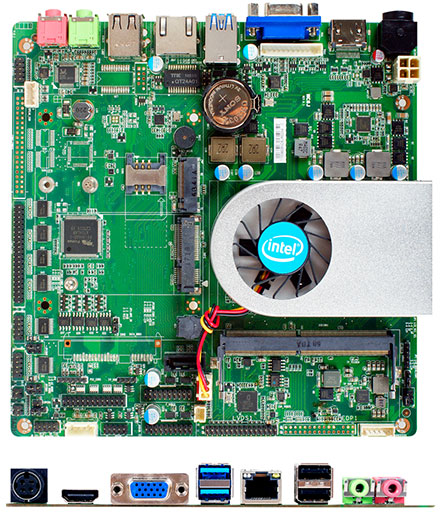

Jetway NC6J-I6100-6C (Intel Skylake-U)

Jetway NC6J-I6100-6C (Intel Skylake-U)

  • Intel SkyLake Core i3‐6100U, 2.30Ghz
  • Support DDR4/2133
  • 1 * PCI Express Gigabit LAN
  • Support Power Onboard (12V)
  • Onboard 1 * Mini PCI-E connector, 1 * M.2 (2242/2260) connector for SSD
  • Mini-ITX Form Factor (170mm * 170mm)


Share

509.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
RAM :

SSD (mSATA):

Build/Install:
Form Factor
Dimensions – Mini-ITX (170 * 170mm)
Processor System
CPU – Intel® Skylake 3855U 1.6GHz Dual Cores CPU
Core Number – Dual
Max Speed – 1.6GHz
L2 Cache –
Chipset – SoC
BIOS – AMI 128Mb Flash ROM
Expansion Slot
PCI – 0
Mini-PCIe – 1 (Full size)
mSATA – 0
PCIe – 0
M.2 – 1 (2242/2260)
SIM Card Holder – 1
Memory
Technology – DDR4 2133/1866MHz SDRAM
Max. – 16GB
Socket – 1 * SO-DIMM
Graphics
Controller – (by CPU)
VRAM – Shared Memory
VGA – 1
LVDS – 1 (Option)
eDP – 1 (Option)
HDMI – 1 (Option)
Display Port – 1 (Option)
MultiDisplay – Yes (Three Displays)
Ethernet
Ethernet – 10/100/1000 Mbps
Controller – 1 * Realtek RTL8111G
Connector – 1 * RJ 45
Audio
CODEC – HD Audio : Realtek ALC662VD
Channel – 4 Channel
SATA
Max Data Transfer Rate – 1 * SATAIII (6.0Gb/s)
Rear I/O
VGA – 1
DVI-D – 0
HDMI – 1 (Option)
Display Port – 1 (Option)
Ethernet – 1
USB – 4 (2 * USB 3.0 + 2 * USB2.0)
Audio – 2 (MIC / Line-out)
Serial / Parallel – 0
PS2 – 0
DC-input – 1
Internal Connector
USB – 3 ( 1 * USB 2.0 + 2 * USB 3.0)
PS/2 – 1
LVDS / inverter – 1 (Option)
eDP – 1 (Option)
VGA – 1
Serial – 6 (2 * RS-232 with 5V/12V selectable header,COM1 Support RS232/422/485)
SATA – 1 * SATAIII (6.0Gb/s)
mPCIe – 1 (Full size)
Parallel – 1
M.2 – 1 (2242/2260)
SIM CARD – 1
GPIO – 4 in / 4 out
Speaker – 1 (3W Amp)
Chassis intrusion – 1
Audio Header – 1
SMBUS/ I2C – 1
AT mode – 1
TPM Header – 0
Others – 0
Watchdog Timer
Output – From Super I/O to drag RESETCON#
Interval – 256 segments, 0,1,2…255sec/min
Power Requirements
Input PWR – +12V DC-in (4-pin PWR Con)
Power On AT/ATX Supported
– AT : Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
Certifications
Certifications – CE, FCC, RoHS, REACH
Environment
Temperature – Operating: 0°C – 60°C
– Storage: -20°C – 85°C
Warranty
Warranty – 2 Years Limited Warranty
