Mitac PH11SI Thin-ITX (Intel H110, LGA1151 Skylake) [M.2, 12V]

PRODUCT IS CURRENTLY NOT AVAILABLE !

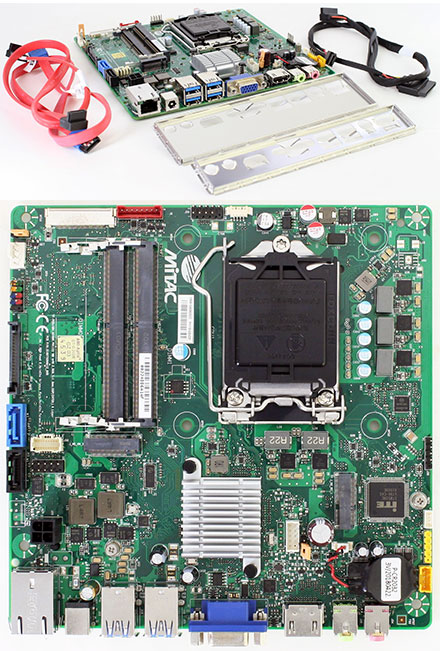

Mitac PH11SI Thin-ITX (Intel H110, LGA1151 Skylake) [M.2, 12V]

1x M.2 2230 E key + 1x M.2 2243 M key



Share

PH11SI (PH11SI) Specifications
MECHANICALFORM FACTORMini-ITX: 6.7" x 6.7" (170 mm x 170 mm)
SYSTEMPROCESSOR7 / 6th Gen Intel® Kaby Lake / Skylake LGA1151 Socket Processor, TDP Max. 65W
CHIPSETIntel® H110
SYSTEM MEMORYDDR4 1866 / 2133MHz / 2 x 260-pin SO-DIMM / Max. 32GB (Non-ECC)
GRAPHICSIntel® HD Graphics
ETHERNETRealtek® RTL8111G Giga LAN
AUDIORealtek® ALC662
I/O CHIPSETITE IT8519E
TPMNuvoton NPCT650AAAYX TPM2.0 (Optional)
EXPANSION SLOTPCIe 2.0 X4 slot
BIOSAMI BIOS / 128 Mbit SPI
H/W MONITORTemperature Monitor / Voltage Monitor / Fan Monitor
WATCHDOG TIMER1~255 steps by software program
SMART FAN CONTROLCPU Fan / System Fan
GRAPHICSVGAUp to 1920 x 1200 @60 Hz
HDMIUp to 4K (3840 x 2160) @30 Hz
DISPLAYPORT-
LVDSUp to 1920 x 1200 @60 Hz
eDP (Option)Up to 4K (4096 x 2304) @60 Hz
REAR I/OUSB4 x USB 3.0
DISPLAY I/O1 x HDMI 1.4 / 1 x VGA
AUDIO I/O1 x Mic-in / 1 x Line-out
LAN I/O1 x RJ-45
SERIAL PORT-
PS/2 PORT-
OTHERSDC-in 19V (5.1 mm / ID, 7.4 mm / OD)
INTERNAL CONNECTORSSTORAGE2 x SATAIII
USB5 x USB 2.0
DISPLAY I/O1 x LVDS (*Optional eDP SKU available) / 1 x Backlight Connector
AUDIO I/O 1 x Line-out
SERIAL PORT-
PARALLEL PORT-
GPIO-
FAN1 x 4-pin CPU Fan Header
POWER1 x AT / ATX Mode Select Jumper / 1 x 19V ATX Power Connector
OTHERS1 x CMOS Jumper
POWER REQUIREMENTPOWER INPUTDC-in 12V (2.5 mm / ID, 5.5 mm / OD) / ATX 4-pin 12V
ENVIRONMENTALOPERATING TEMPERATURE0 ~ 60°C (32 ~140°F)
STORAGE TEMPERATURE-20 ~ 70°C (-4 ~158°F)
OPERATING HUMIDITY10% ~ 95% R/H (Non-condensing)
CERTIFICATIONCE / FCC Class B
OSOS SUPPORTKaby Lake: Windows® 10 64bit, Linux (support by request) / Skylake: Windows® 7 32 / 64bit, Windows® 10 64bit, Linux (support by request)
PACKING LISTPACKAGE1 x Motherboard / 2 x I/O Bracket (Half and Full Height) / 1 x Driver CD / 1 x Quick Installation Guide / 1 x 45 cm SATA Cable / 1 x 40 cm SATA Cable / 1 x 50 cm SATA&ODD; Y Power Cable
Data sheet Download (PDF)
Data sheet Print view
Mitac Catalogue Download (PDF)
BIOS Download
