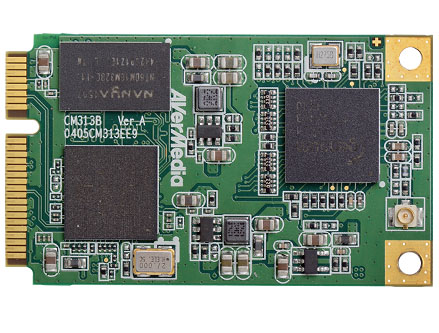

AVerMedia CM313B MiniPCIe CaptureCard (1080p60 H.264 H/W Encode, SDI)

PRODUCT IS CURRENTLY NOT AVAILABLE !
AVerMedia CM313B MiniPCIe CaptureCard (1080p60 H.264 H/W Encode, SDI)
  • H.264 !
  • H/W Encode !
  • 1080p60 !
  • SDI !

The CM313B is a Mini PCIe HW encode video capture card which supports a single 3G-SDI input providing a nominal 2.970 Gbit/s interface for applications requiring HD 1080p video resolution. The CM313B enables professionals to capture SD, HD, or 3G-SDI video footage in real-time 3G-SDI Video Input.
Designed with 3G-SDI standards (SMPTE 424M), the CM313B offers uncompressed, H.264 digital video signal transmission, including embedded audio and supports input resolution up to 1920 x 1080 60fps. The SDI standard provides a nominal 2.970 Gbit/s interface specifically suited for applications such as in-vehicle, broadcasting, and surveillance.

  • H.264 H/W encoding Mini-PCIe [more]

    Share

The CM313B is a Mini PCIe HW encode video capture card which supports a single 3G-SDI input providing a nominal 2.970 Gbit/s interface for applications requiring HD 1080p video resolution. The CM313B enables professionals to capture SD, HD, or 3G-SDI video footage in real-time 3G-SDI Video Input.
Designed with 3G-SDI standards (SMPTE 424M), the CM313B offers uncompressed, H.264 digital video signal transmission, including embedded audio and supports input resolution up to 1920 x 1080 60fps. The SDI standard provides a nominal 2.970 Gbit/s interface specifically suited for applications such as in-vehicle, broadcasting, and surveillance.

  • H.264 H/W encoding Mini-PCIe
  • HD video capture with 3G-SDI input
  • Low latency uncompressed video/audio and H.264 transport stream outputs
  • Supports AES embedded audio inputs




Interface Mini PCI-e
Channel No. 1
Max. Resolution 1920x1080
Frame Rate 24p, 25p, 30p, 50p, 60p, 50i, 60i
Color Format YUY2(4:2:2), YV12 (4:2:0), RGB24
Color Depth 8 bit
Supported OS Windows 7/8.1/10 (32/64 bits), Linux (32/64 bits)*
SDK Supported Language C, C++, C#, VB, VB.net, Delphi
H/W Encode Format H.264/AAC
Audio Input SDI (embedded audio)
Operating Temperature 0℃ ~ +55℃
Dimensions (L x W) 50.95 x 30mm
Data sheet Download (PDF)
Data sheet Print view
Datasheet Download (PDF)
