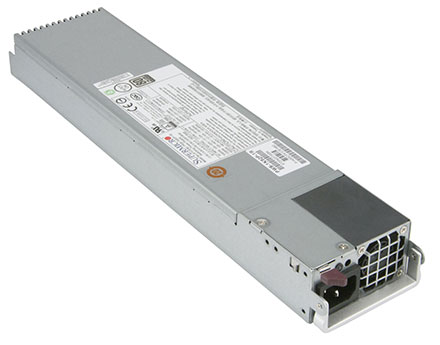

Supermicro 1600W 1U Power Supply (PWS-1K68A-1R)

Supermicro 1600W 1U Power Supply (PWS-1K68A-1R)
  • PWS-1K68A-1R !

New devices.

The Supermicro PWS-1K68A-1R is an 80 Plus Titanium power supply capable of supplying 1600W output power at 91% efficiency. Enjoy the simplicity of active power factor correction (PFC) and automatically correct AC input for a full range of voltages. Features a card edge connector for connection with the backplane of compatible Supermicro 1U systems. This power supply is designed to not only provide you reliable power to your Supermicro server but also protects it from over voltage, over current and short circuiting via protective circuitry embedded into the unit. Rest easy knowing your hardware will be up and running with a mean-time between failure (MTBF) of great
[more]

Share

398.00 EUR
incl. 19% VAT, plus shipping
In Stock (1 pcs)

Add to cart

New devices.

The Supermicro PWS-1K68A-1R is an 80 Plus Titanium power supply capable of supplying 1600W output power at 91% efficiency. Enjoy the simplicity of active power factor correction (PFC) and automatically correct AC input for a full range of voltages. Features a card edge connector for connection with the backplane of compatible Supermicro 1U systems. This power supply is designed to not only provide you reliable power to your Supermicro server but also protects it from over voltage, over current and short circuiting via protective circuitry embedded into the unit. Rest easy knowing your hardware will be up and running with a mean-time between failure (MTBF) of greater than 200,000 hours and an LED indicator to keep you informed on normal/abnormal conditions for your PSU. This power supply is redundant to safe-guard your system from power failure and allows for hot-swap replacement to eliminate system downtime. All materials contained comply with RoHS requirements and is certified by Supermicro.


  • PMBus 1.2 Support for Remote Management
  • Flexible Redundancy Control
  • 80 Plus Titanium
  • Supermicro Certified


Total Power Output 800W / 1600W
Type Module
Type of Power Supply Power Supply
Form Factor 1U
Dimension (W x H x L) 76 x 40 x 336 mm
+5V N/A
+12V 67/133A
+3.3V N/A
5V Standby 1A
Input Voltage Range 100-140V, 180-240V
Input Frequency Range 50-60Hz
Input Current Range 10-7A, 11-8A
Output Type Gold Finger (27 Pair Connector)
8Pin / 4Pin (12V) Connector N/A
PFC Yes
Voltage / Current Yes
Energy Efficiency 91% Peak
80 Plus Certification 80 Plus Titanium
Validated Systems SSG-6048R-DE2CR24L, SYS-2028TP-DNCFR, SYS-2028TP-DNCR, SYS-2028TP-DNCTR, SYS-2028TR-H72FR, SYS-2028TR-H72R, SYS-2028TR-HTFR, SYS-2028TR-HTR, SYS-5038MD-H8TRF, SYS-5039MD8-H8TNR, SYS-5039MD18-H8TNR, SYS-5039MS-H8TRF, SYS-6028TP-DNCFR, SYS-6028TP-DNCR, SYS-6028TP-DNCTR, SYS-6028TR-HTFR, SYS-6028TR-HTR, SYS-6029TR-HTR
Warranty 1 year warranty
Product Environmental Compliance RoHS and REACH compliant, details available upon request
Data sheet Download (PDF)
Data sheet Print view
