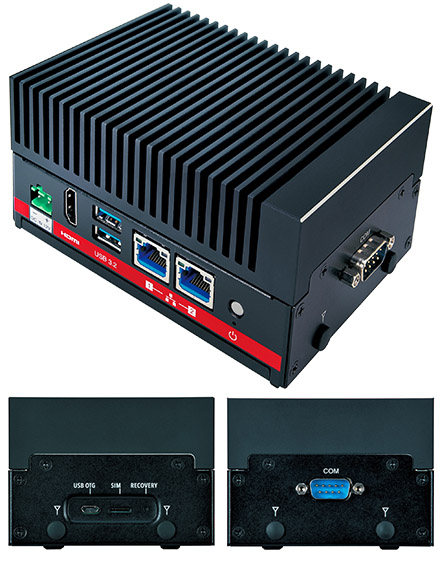

Mitac MA1-NX-8GB BoxPC (NVIDIA Jetson Orin NX, 8GB)

Mitac MA1-NX-8GB BoxPC (NVIDIA Jetson Orin NX, <b>8GB</b>)
  • NVIDIA Jetson !
  • Orin NX 8GB !
  • Industrial-grade Design !
  • -25~60°C Wide Temperature !

  • NVIDIA® Jetson Orin™ Nano and NX SOM Compatible Box PC, Up to 100TOPS/25W
  • Industrial Fanless & Compact Design
  • Wide Operating Temperature -25~60°C
  • HDMI up to 4K@60Hz Resolution
  • 2x RJ-45 1GbE LAN
  • 2x USB3.2 Gen2 Type A
  • 1x D-Sub9 RS-232 (4-wire)
  • High-speed M.2 2280 PCIe x4 NVMe
  • Support 5G/LTE and WiFi-6E





    • Share

    1319.00 EUR
    incl. 19% VAT, plus shipping
    Available in 3 weeks
    Add to cart
    MA1 (MA1) Specifications
    SYSTEMNVIDIA® Jetson Orin™ Compatible Module NVIDIA® Jetson Orin™ NX 8GB Module (10~20W)
    DISPLAY INTERFACE1 x HDMI 2.0 Type A, Up to 3840 x 2160 at 60 Hz Resolution
    I/O PORT2 x USB 3.2 Gen 2 Type A / 1 x USB2.0 MicroUSB OTG with Recovery Button (for Recovery Mode Only)
    EXPANSION SLOT1 x M.2 3042/3052 B-Key Slot (USB3.2) for 5G/LTE Module / 1 x Nano-SIM Slot / 1 x M.2 2230 E-Key Slot (PCIe/USB2.0) for WiFi Module
    REAR I/O2 x 1GbE RJ-45 / 1 x RS-232 DB9 (4-wire)
    STORAGE1 x M.2 2280 M-Key Slot (PCIe x4 for NVMe)
    POWER REQUIREMENTPOWER INPUT12V DC Input
    POWER ADAPTER60W AC-DC Power Adapter with 2-PIN Terminal Block
    MECHANICALTHERMAL DESIGNFanless
    DIMENSIONS (W X D X H)90 x 125 x 65 mm
    ENVIRONMENTALOPERATING TEMPERATURE-25°C ~ 60°C
    OPERATING HUMIDITY10% ~ 95% R/H (Non-condensing)
    CERTIFICATIONCE / FCC Class B
    OSOS SUPPORTNVIDIA JetPack 5.1.1 (Ubuntu 20.04 with Linux Kernel 5.10 LTS)
    PACKING LISTPACKAGE1 x Embedded System / 1 x AC-DC Power Adapter with 2-Pin Terminal Block / 1 x MicroUSB cable / 1 x Power Cord
    Data sheet Download (PDF)
    Data sheet Print view
    Mitac Catalogue Download (PDF)
    Mitac Edge AI Guide Download (PDF)
    Specifications Download (PDF)
