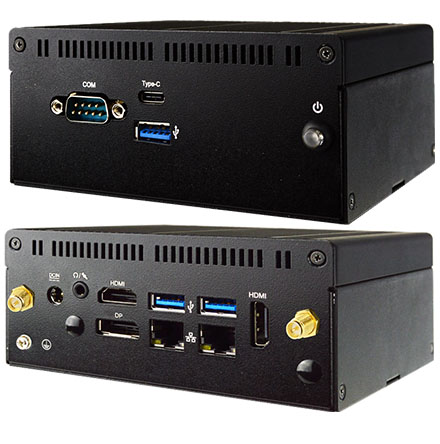

Jetway HBFBU02i-08-B (Intel Apollo Lake J3455 SoC, 2x LAN, 12V DC, 64GB eMMC, TPM2.0, WLAN)

Jetway HBFBU02i-08-B (Intel Apollo Lake J3455 SoC, 2x LAN, 12V DC, 64GB eMMC, <b>TPM2.0, WLAN</b>)
  • Intel Apollo Lake SoC !
  • 2x LAN !
  • 64GB eMMC !
  • TPM2.0 / WLAN !

  • Intel® Apollo Lake J3455 SoC Processor
  • Support 1* SO-DIMM DDR3L-1866MHz up to 8GB
  • 32GB eMMC onboard (Default), 1* DP, 2* HDMI
  • 3* USB3.0, 1* USB type-C, 1* RS232/422/485, 2* RJ45, 1*Audio
  • 12V DC-in


Share

409.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
RAM :

SSD (mSATA):

SSD (M.2 NVME):

SSD (2.5"):

Build/Install:
Dimensions – System : 125 (W) x 109.2 (D) x 55.5 (H) mm
– Color Box : 158 (W) x 167 (D) x 123.6 (H) mm
MB model – MU02-04B (64GB eMMC)
– MU02-08B (64GB eMMC, TPM2.0)
Part No 64GB eMMC 64GB eMMC and TPM2.0
– HBFBU02-04-B
– HBFBU02I-04-B (Wifi) 		– HBFBU02-08-B
– HBFBU02I-08-B (Wifi)
CPU – Intel® Apollo Lake J3455 SoC Processor (Quad Core, 1.50/2.30 GHz)
BIOS – AMI UEFI
Memory – Support 1 * DDR3L 1866MHz SO-DIMM up to 8GB
Storage – Support 1 * M.2 (M-key, 2242), SATA interface
– 64GB onboard eMMC (default)
– 1 * 2.5″ SATA2 3Gb/s drive bay for HDD or SSD (only support 2.5″ HDD with a height ≤ 10mm)
Audio – Dual channel HD Audio: Realtek ALC662VD
Front I/O Port – 1 * USB 3.0
– 1 * USB type-C
– 1 * COM (RS232/422/485)
– 1 * power button
Rear I/O Port – 2 * USB 3.0
– 2 * HDMI (Max. resolution: 3840×2160@30Hz)
– 1 * DP (Max. resolution: 4096×2160@60Hz)
– 2 * RJ45
– 1 * GND hold
– 1 * Line-out/MIC combo
– 1 * DC-in jack
Network – 2 * Realtek RTL8111K GbE
– 802.11 b/g/n/ac WiFi (HBFBU02I-03-B / HBFBU02I-07-B only)
Power Source – Adapter: AC 90~240V / DC12V / 40W
– MB: 12V DC input
Certification – EMC : CE , FCC
– Safety : RoHS , ErP
Environment – Operating Temperature : 0°C~50°C with air flow (mSATA)
– Storage Temperature : -40°C~85°C
– Humidity: 10% ~ 95% RH @40°C (non-condensing)
Mounting Bracket – Wall / VESA / DIN Rail combo mounting Kit (option)
Packing – Net Weight：0.9 KG
– Gross Weight：1.3 KG
– Color Box Dimension：158(W) x 167(D) x 123.6(H) mm
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (Rackmount) Download (PDF)
Jetway Catalog (Barebones) Download (PDF)
