CTFTAB TabletPC Barebone (1.6Ghz, WLAN, Bluetooth, GPS) [TRANSFLECTIVE]

CTFTAB TabletPC Barebone (1.6Ghz, WLAN, Bluetooth, GPS) [<b>TRANSFLECTIVE</b>]
  • Semi-Ruggedized !
  • 1.6Ghz !
  • 12.1" Sunlight-Readable !
  • GPS ! Touchscreen !

This TabletPC has an enormous power- and functionality density and is useable for a wide range of applications (eg. CarPC, input terminal, POS, ...)

The PC is equipped with a VIA C7 1.6Ghz Mobile CPU. The internal Lithium-Ion battery enables a usage duration of up to 3.5 hours.

For communication the device already is equipped with LAN, Modem, Bluetooth and WLAN. The integrated GPS receiver enables positioning and navigation.

This optional accessoiry is available :
- Home docking station with 4x USB ports
- Car VESA-mounting-adapter with 4x USB and car power adapter
- Additional power battery


For a full system
[more]

Share

498.00 EUR
incl. 19% VAT, plus shipping
In Stock (3 pcs)

Add to cart

This TabletPC has an enormous power- and functionality density and is useable for a wide range of applications (eg. CarPC, input terminal, POS, ...)

The PC is equipped with a VIA C7 1.6Ghz Mobile CPU. The internal Lithium-Ion battery enables a usage duration of up to 3.5 hours.

For communication the device already is equipped with LAN, Modem, Bluetooth and WLAN. The integrated GPS receiver enables positioning and navigation.

This optional accessoiry is available :
- Home docking station with 4x USB ports
- Car VESA-mounting-adapter with 4x USB and car power adapter
- Additional power battery


For a full system you in addition need these components :
- 1x 2.5" SATA HDD or SSD drive
- 1x SO-DDR-II RAM
You can install these components on the rear side by opening the easily accessable service slots. We however also can assemble the system for you.



Passed Ruggedized Tests :
- Vibration : 3-200Hz, 0.00002 to 0.02G/Hz, 0.7Grms, 90 minutes
- Fall height : Six times free fall from 60cm height (4x corner, 2x side)
- Touchscreen was covered with water for 24 hours while operating

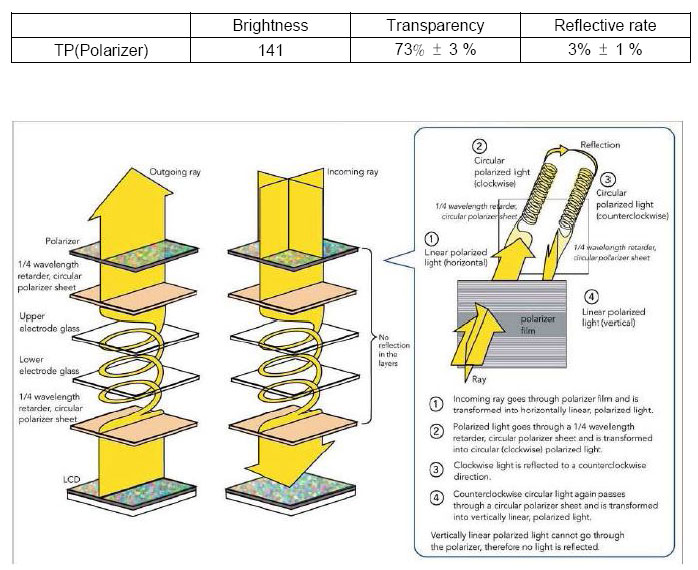

Note : The TFT panel is also available in transflective version (sunlight readable). Please contact us if you are interested.



CPU VIA C7-M 1.6Ghz
L2 Cache : 128K
Chipset North Bridge : VIA VN896
South Bridge : VIA 8237A
Memory support 1 * 200-pin DIMM Sockets for un-buffered Single Channel DDR2 533/667 SDRAM up to 1GB
Storage support 1 * 2.5" SATA HDD/SSD/Flash-HDD
Display 12.1" WXGA TRANSFLECTIVE TFT (Native resolution 1280x800)
Touchscreen 5-wire resistive
Audio High Definition Audio Codec, 24-bit
Communications Built-In 56K V.92 modem
Built-In 10/100 Base-T Ethernet LAN
Built-In WLAN Ralink 802.11 b/g/n (WiFi certified)
Security Kensigton Lock support
Battery Standard Li-Ion 6-cell smart battery, 4400mAH
(battery life up to 3.5 hours)
Power DC20V, 3.25A, 65W
BIOS AMI Note BIOS, 1MB, Flashable, ACPI 2.0
GPS Integrated GPS receiver
Bluetooth Integrated
I/O 1x LAN RJ-45
1x Modem RJ-11
1x VGA (DSUB-15)
1x Express card slot
1x USB 2.0 port
1x Docking station port
1x Headphone
1x Microphone
1x Memory card slot (MS/MS Pro/SD/MMC)
1x Smart card slot (optional function)
1x GPS antenna (SMA)
1x DC-In
Dimensions 297 x 210 x 35 mm (TabletPC)
315 x 227 x 46 mm (TabletPC with protection rubber)
Optional features
(only available for project orders)
Integrated Smart card reader
Integrated RFID module
Integrated HSPA Express card (3.5G)
Supported OS
Windows Vista, XP, POS, XP embedded, Win 7, Linux
Scope of supply - 12.1" Tablet PC 1.6Ghz Barebone
- 1x Modem cable
- 1x Touchscreen pencil
- 1x GPS antenna (SMA)
- 1x AC/DC adapter 100-240V
- 1x Protection rubber
Data sheet Download (PDF)
Data sheet Print view
Transflective Sheet Download
GPS Driver (Win) Download
Drivers (Win/Linux) Download
Drivers (Windows 7) Download
